Fiat 500 Headlamp Repair Relay – V23026C1021A502 TYCO Relay X1

Fiat 500 Headlamp Repair Relay – V23026C1021A502 TYCO Relay X1

Quality replacement/repair product supplied by Aline Products in the UK.

• Product: Fiat 500 Headlamp Repair Relay – V23026C1021A502 TYCO Relay X1
• Category: Relays
• UK stock

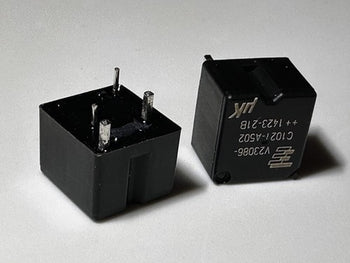

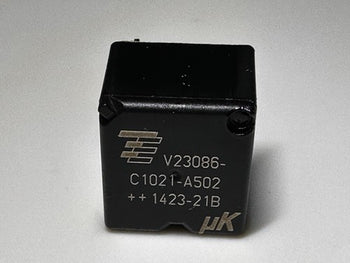

Model:V23086-C1021-A502

Quantity:1PcCondition:NewPackage Content: 1x V23086-C1021-A502

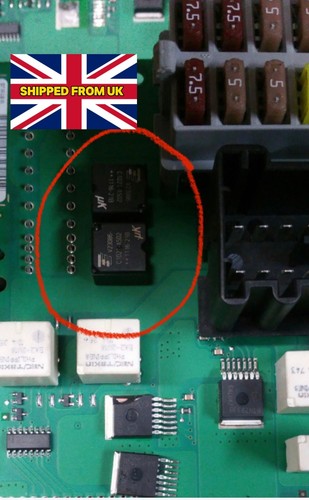

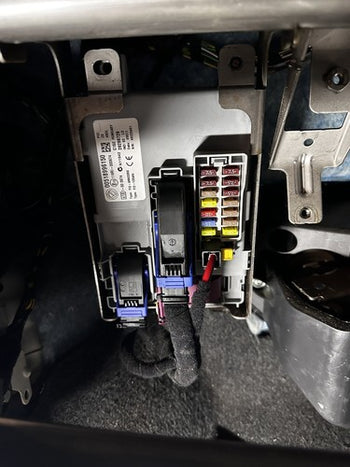

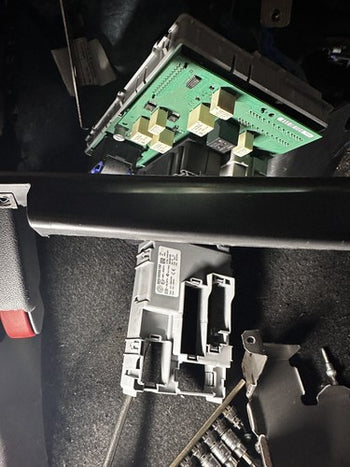

On the Fiat 500 common fault is headlamp staying on the fixed to be found on YouTube explains how to remove the BCM that is behind the glove box open up. I remove and replace the faulty relay There is two relays on the board, either test, each relay replace as needed or replace both whilst it is a part to save future wishes. If you need advice, you can contact us as we have that many of these ourselves, the picture shows are to realise that all the common issue circled in red. If you require both relays, please select two in the quantity.

Please note some other fiat 500 bcm units use another type this we also sell:

(NEC EP1-B3G1S  it is less common normally on older cars and the older Abath's)
