uprated 70A 12V Relay HF Automotive Relay 4 Pins (large output pins) HFV7 – 012

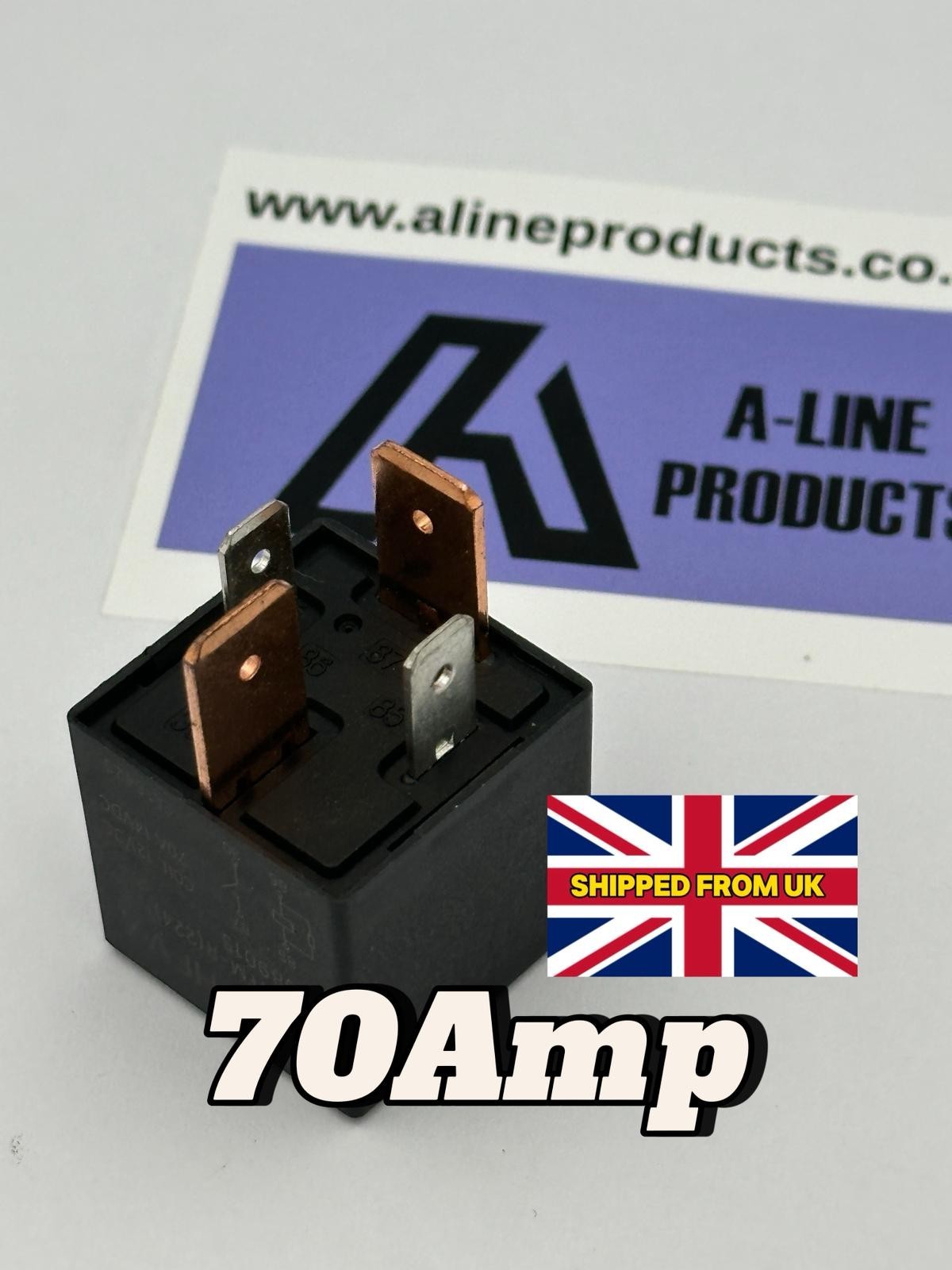

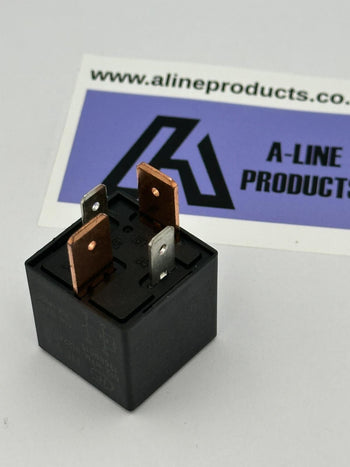

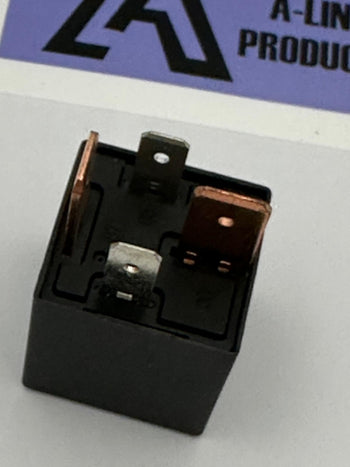

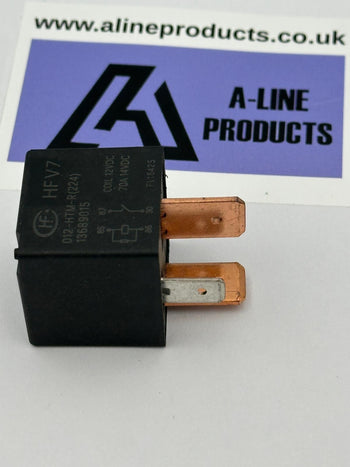

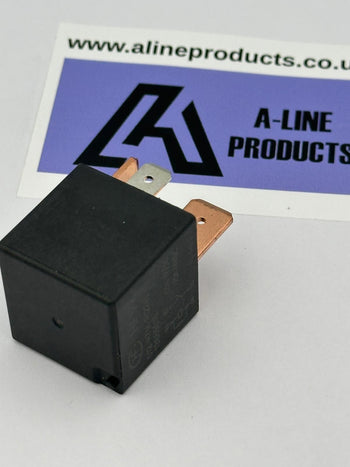

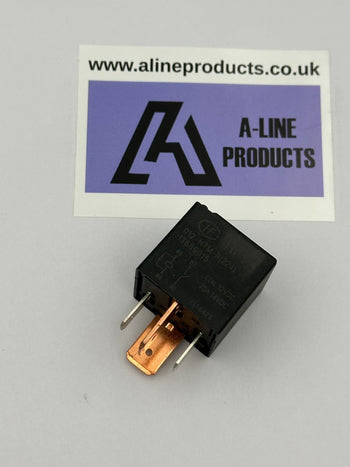

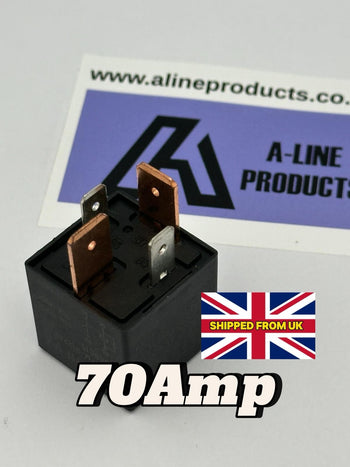

HF HFV7-012 Automotive Power Relay – 12V DC, 70A, 4-Pin, Large Output Terminals

The HF HFV7-012 is a high-current automotive power relay designed for applications requiring reliable switching of heavy electrical loads. This uprated version features large output pins, enabling safe control of up to 70 Amps with reduced resistance and improved thermal performance.

This relay can also be used as a direct uprated replacement for many standard 50A or 60A automotive relays, offering increased current handling and improved durability in high-load circuits.

Electrical Specifications:

  • Manufacturer: HF (Hongfa)

  • Model: HFV7-012

  • Coil Voltage: 12V DC

  • Contact Configuration: SPST-NO (1 Form A)

  • Rated Switching Current: Up to 70A

  • Pin Count: 4-Pin

  • Output Terminals: Large high-current pins

  • Contact Material: Silver alloy

  • Automotive-grade construction

Pin Configuration / Wiring Diagram:


[ 87 ] Output (Load) | | [ 30 ] Power Input (Battery +) [ 86 ] Coil + (12V Control) [ 85 ] Coil – (Ground)

Pin Functions:

  • Pin 30: Common power input (battery supply)

  • Pin 87: Normally open output to load

  • Pin 85: Coil negative (ground)

  • Pin 86: Coil positive (+12V trigger)

Technical Advantages of Large Output Pins:

  • Increased conductor cross-section for higher current capability

  • Reduced contact resistance and voltage drop

  • Improved heat dissipation during sustained loads

  • Stronger mechanical connection for heavy-gauge wiring

Typical Applications:

  • High-power cooling fans

  • Winches and DC motors

  • Auxiliary and off-road lighting

  • Heaters, compressors, pumps

  • Power distribution and battery systems

Please check fitment before ordering.
Vehicle parts can have variants even within the same model and year. Compare the listing photographs, plug/connector shape, dimensions and part numbers where applicable.
